1. OPERATING SYSTEM BASICS

What is an Operating System?

An Operating System can be defined as an interface between user and hardware. It is responsible for the execution of all processes, Resource Allocation, CPU management, File Management and many other tasks.

The purpose of an operating system is to provide an environment in which a user can execute programs in a convenient and efficient manner.

Operating System Functions

Kernel

Kernel is the part of the OS that interacts directly with hardware and performs the most crucial tasks.

• Heart of OS / Core component
• First part of OS to load on start-up

Functions of Kernel:

User Mode vs Kernel Mode Communication

Communication happens through Inter-Process Communication (IPC).

IPC (Inter-Process Communication):

• Mechanism allowing processes to communicate and exchange data
• Processes execute independently with separate memory spaces (memory protection)
• Since they cannot directly access each other's memory, they use IPC to communicate

How apps interact with Kernel? → Using System Calls

• Examples: fork(), exit(), wait()

⚙️ 2. COMPUTER BOOT PROCESS

What happens when you turn on your computer?

text

1. CPU starts
2. BIOS/UEFI firmware loads
3. POST (Power-On Self Test) checks hardware
4. Bootloader loads from storage device
5. Bootloader loads OS kernel into memory
6. Kernel initializes system
7. User-space applications start
8. Login screen/desktop appears

💾 3. MEMORY HIERARCHY

Types of Memory

Comparison

Volatility

🔢 4. 32-BIT vs 64-BIT OPERATING SYSTEM

📊 5. TYPES OF OPERATING SYSTEMS

Multiprogramming vs Multitasking

Time-sharing OS extends multitasking to multiple users, giving each user a small time slice of the CPU.

🔄 6. PROCESS MANAGEMENT

Process Definition

A process is a program that is currently being executed.

• Program = Passive (stored on disk)
• Process = Active (running in memory)

Components of a Process

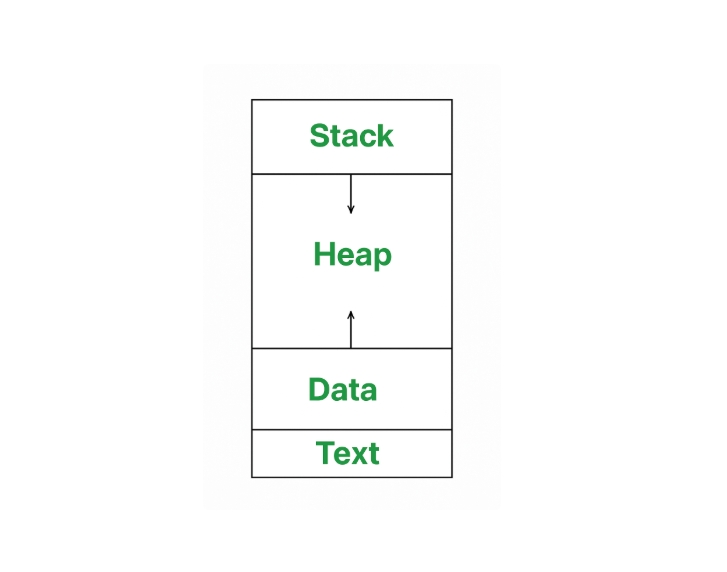

Process Architecture in Memory

How an OS Creates a Process

Process Control Block (PCB)

PCB is a data structure maintained by the OS that stores all information about a process.

PCB Contains:

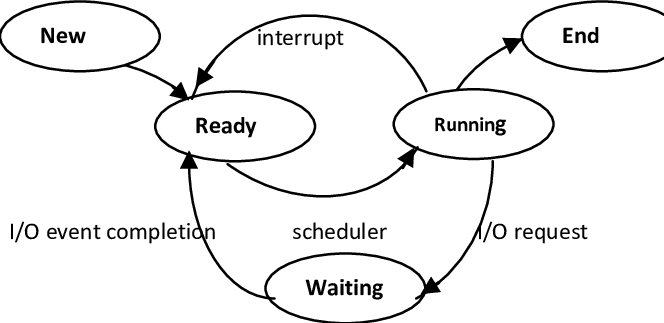

Process States

Schedulers

Process Scheduling Metrics

🧵 7. THREADS

What is a Thread?

A thread is the smallest unit of CPU execution inside a process. It is lightweight because it shares resources with other threads of the same process.

Why is a Thread Called a Lightweight Process?

• Because it shares the process's memory and resources instead of creating its own copy.

Thread Resources

User Threads vs Kernel Threads

Multitasking vs Multithreading

Thread Scheduling

• Threads scheduled by Operating System (OS)
• Based on thread priority
• Every thread gets a CPU time slice

Thread Context Switching vs Process Context Switching

Important Points

Context switching is the process of saving the state of the currently running process/thread and loading the state of another process/thread so that the CPU can switch execution between them.

Overhead is the extra CPU time and system resources spent on management tasks instead of executing the actual program.

Problem: CPU spends time saving and restoring process states instead of executing the actual program → increases overhead → reduces CPU efficiency.

fork() System Call

• fork() creates a child process
• Total processes = 2ⁿ - 1 if fork() is called n times

📋 8. SCHEDULING ALGORITHMS

Key Concepts

Convoy Effect: Occurs when a long process gets CPU first, causing shorter processes to wait.

Starvation: Process waits indefinitely because others keep getting CPU first.

Preemptive vs Non-Preemptive Scheduling

Scheduling Algorithms Comparison

HRRN Formula

Response Ratio = (Waiting Time + Burst Time) / Burst Time

Multilevel Queue (MLQ)

• Processes divided into different queues based on priority/type
• Fixed queues - process cannot move between queues

text

System Queue (Highest Priority) ↓ Interactive Queue ↓ Background Queue (Lowest Priority)

Issue: Lower queues may starve.

Multilevel Feedback Queue (MLFQ)

• Processes can move between queues depending on CPU usage

text

High Priority (Interactive jobs stay here) ↓ Medium Priority ↓ Low Priority (CPU-intensive jobs move here)

Features:

• Process can move up or down
• Interactive jobs stay in higher-priority queues
• CPU-intensive jobs move to lower-priority queues
• Better CPU utilization
• Reduces starvation

🔒 9. SYNCHRONIZATION

Critical Section Problem

The Critical Section Problem ensures that when multiple processes/threads share data, only one can access shared data at a time.

Race Condition

A race condition occurs when two or more processes/threads access and modify shared data simultaneously, causing the final result to depend on the order of execution.

Solutions to Critical Section Problem

1. Mutex (Mutual Exclusion)
2. Semaphore
3. Monitor
4. Lock

Conditions for Solving Critical Section Problem

Synchronization Tools

Synchronization tools prevent race conditions and ensure safe access to shared resources.

Semaphore

A semaphore is a synchronization mechanism used to control access to shared resources.

we have wait() Decrements counter. If counter < 0, blocks signal() - Increments counter. Wakes up a blocked thread

Mutex

A Mutex (Mutual Exclusion) is a locking mechanism that allows only one thread/process to access a shared resource at a time.

PETERSON'S SOLUTION

Problem: Mutual exclusion for two processes sharing a critical section (no hardware support, no OS help)

Goal: Ensure only one process enters the critical section at a time

Algorithm

// Shared variables (initialized to 0)
int flag[2] = {0, 0};    // flag[i] = 1 means process i wants to enter
int turn = 0;            // Whose turn is it?

// Process 0
flag[0] = 1;             // "I want to enter"
turn = 1;                // "But I give priority to the other process"
while (flag[1] && turn == 1) { } // Wait if other wants and it's their turn
// ----- CRITICAL SECTION -----
flag[0] = 0;             // "I'm done"

// Process 1
flag[1] = 1;             // "I want to enter"
turn = 0;                // "But I give priority to the other process"
while (flag[0] && turn == 0) { } // Wait if other wants and it's their turn
// ----- CRITICAL SECTION -----
flag[1] = 0;             // "I'm done"

Problems

1. Busy Waiting (Spinlock) - Wastes CPU cycles
2. Only Works for 2 Processes

Conditional Variable

A condition variable is a synchronization primitive that allows threads to sleep (block) until a specific condition becomes true.

• Works with a lock
• Thread can wait only when it has acquired a lock
• When thread enters wait state, it releases the lock
• Another thread notifies when event occurs

The Producer-Consumer problem involves two threads sharing a fixed-size buffer. The Producer adds data, and the Consumer removes it. We must ensure the Producer doesn't add to a full buffer, the Consumer doesn't remove from an empty buffer, and neither thread wastes CPU cycles spinning in a loop.

The Producer-Consumer problem is solved using a mutex and two condition variables - not_full for producers and not_empty for consumers.

The Producer locks the mutex, checks if the buffer is full using a while loop. If full, it calls wait() on not_full - which atomically unlocks the mutex and puts the Producer to sleep. When woken up, it adds the item, signals not_empty to wake a sleeping Consumer, and unlocks the mutex.

The Consumer does the opposite - locks the mutex, checks if buffer is empty using a while loop. If empty, it calls wait() on not_empty and sleeps. When woken up, it removes the item, signals not_full to wake a sleeping Producer, and unlocks the mutex.

We use while instead of if to handle spurious wakeups and race conditions, ensuring the thread re-checks the condition before proceeding.

🔄 10. DEADLOCK

What is Deadlock?

A Deadlock is a situation where two or more processes are permanently blocked because each process is holding a resource and waiting for another resource held by another process.

Necessary Conditions for Deadlock (4 Conditions)

M + H + N + C = Deadlock

How to Prevent Deadlock?

Break any one condition:

1. Make resources shareable (remove Mutual Exclusion where possible)
2. Don't allow Hold and Wait (request all resources at once)
3. Allow resource preemption
4. Prevent Circular Wait (enforce ordering of resource requests)

Methods for Handling Deadlocks

Deadlock Avoidance - Banker's Algorithm

Banker's Algorithm is a deadlock avoidance algorithm that allocates resources only if doing so keeps the system in a safe state.

Goal:

• Avoid deadlock
• Keep system in a Safe State

🍽️ 11. DINING PHILOSOPHERS PROBLEM

Problem Statement

• 5 philosophers sit around a circular table
• Each has a fork on both sides (5 forks total)
• They alternate between Thinking and Eating
• To eat, philosopher needs both adjacent forks (left + right)
• They can pick one fork at a time

The Challenge

1. ✅ No two neighbors eat simultaneously
2. ✅ No deadlock
3. ✅ No starvation

Deadlock Scenario

text

All 5 philosophers get hungry at the same time:

1. Each picks up their LEFT fork simultaneously
2. All forks are taken (semaphore count = 0)
3. Each tries to pick up their RIGHT fork
4. ❌ DEADLOCK! Everyone waits forever

Solutions

Odd-Even Rule:

• Philosophers 1,3,5 (Odd): Pick LEFT first, then RIGHT
• Philosophers 2,4 (Even): Pick RIGHT first, then LEFT
• Breaks circular wait condition → Deadlock impossible

Key Insight: Semaphores alone don't prevent deadlock; we need higher-level policies.

🔄 12. SWAPPING

Swapping

• Done by: Medium-Term Scheduler (MTS)
• What: Move process out of memory (swap-out) → disk → bring back later (swap-in)
• Why: Reduce multi-programming, free memory, improve process mix
• Key: Process resumes from where it left off

👶 13. ORPHAN AND ZOMBIE PROCESSES

Orphan Process

Zombie Process (Defunct)

14. Memory Management

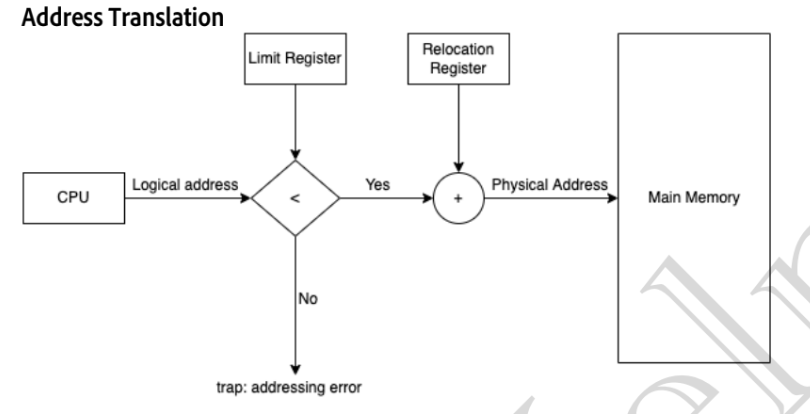

Logical address is the address generated by the CPU and used by the program during execution. It is a virtual address. The Memory Management Unit (MMU) translates this logical address into a physical address, which is the actual location in RAM where the data is stored.

• Logical = What the program thinks
• Physical = Where the data actually is in RAM

Without this mechanism:

• Process A could modify Process B's memory or Overwrite the os. No isolation in memory With base + limit + MMU, each process sees its own virtual memory starting at 0, while the OS ensures it can only access its allocated region in RAM.

Contiguous Memory Allocation: Each process is stored in one continuous (adjacent) block of memory.

Non-Contiguous Memory Allocation: A process is divided into multiple parts and stored at different locations in memory.

Fixed Partitioning: Memory is divided into fixed-size partitions before execution, and each process is loaded into one partition.A process cannot be larger than the largest partition.

Dynamic Partitioning: Partitions are created at runtime according to the process size.

Internal Fragmentation: Unused space inside an allocated partition because the partition is larger than the process. Example:

Partition = 4 MB
Process = 3 MB
Waste = 1 MB (Internal Fragmentation)

External Fragmentation: Free memory is scattered into small non-contiguous blocks, so a large process cannot be allocated even if the total free memory is sufficient. Example:

Free = 5 MB + 3 MB
Need = 8 MB
Cannot allocate (not contiguous)

Degree of Multiprogramming - The number of processes that can reside in memory at the same time.

15. Free Space Management

Defragmentation (Compaction) : The process of combining scattered free memory into one large contiguous block by moving processes together to eliminate external fragmentation.

Free Space Management : A linked list that stores all free memory blocks (holes) in memory.

Hole : A free (unused) block of memory available for allocating a process.

First Fit : Allocates the first free memory block that is large enough for the process.

Next Fit : Similar to First Fit, but starts searching from the last allocated position instead of the beginning.

Best Fit : Allocates the smallest free block that is large enough for the process

Worst Fit: Allocates the largest available free block to the process.

16. Paging | Non-Contiguous memory allocation

• To remove external fragmentation we introduces the idea of paging where we do non contiguous memory allocation.

• Process is divided into Pages.

• RAM is divided into Frames.

• Page size = Frame size.

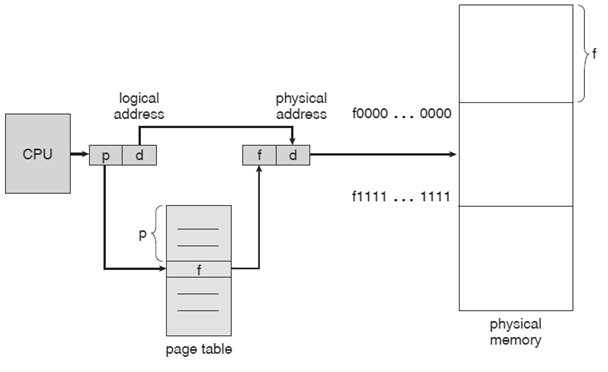

Page Table: A data structure maintained by the OS that maps Page Number → Frame Number.

In paging, the CPU never generates a page number directly.

It generates a Logical Address.

The logical address is split into two parts:

Logical Address

+----------------------+------------------+
|   Page Number (P)    |    Offset (d)    |
+----------------------+------------------+

• Page Number (P): Which page?
• Offset (d): Which byte inside that page?

The page table replaces the Page Number with the Frame Number, while the Offset remains unchanged.

Page table is stored in the PCB which is unique for each process. why ? because the virtual address space is unique for each process.

Why is Paging Slow?

CPU
 ↓
Page Table (Memory Access 1)
 ↓
RAM (Memory Access 2)

➡️ 2 memory accesses are needed for every data access.

Solution : TLB is a small, high-speed hardware cache that stores recently used Page Number → Frame Number mappings to speed up address translation.

• TLB Hit: Mapping found in TLB → Faster access.
• TLB Miss: Mapping not found in TLB → Check page table, update TLB, then access memory.

ASID: Unique process ID stored in TLB entries to distinguish mappings of different processes.

17. Segmentation | Non-Contiguous Memory Allocation

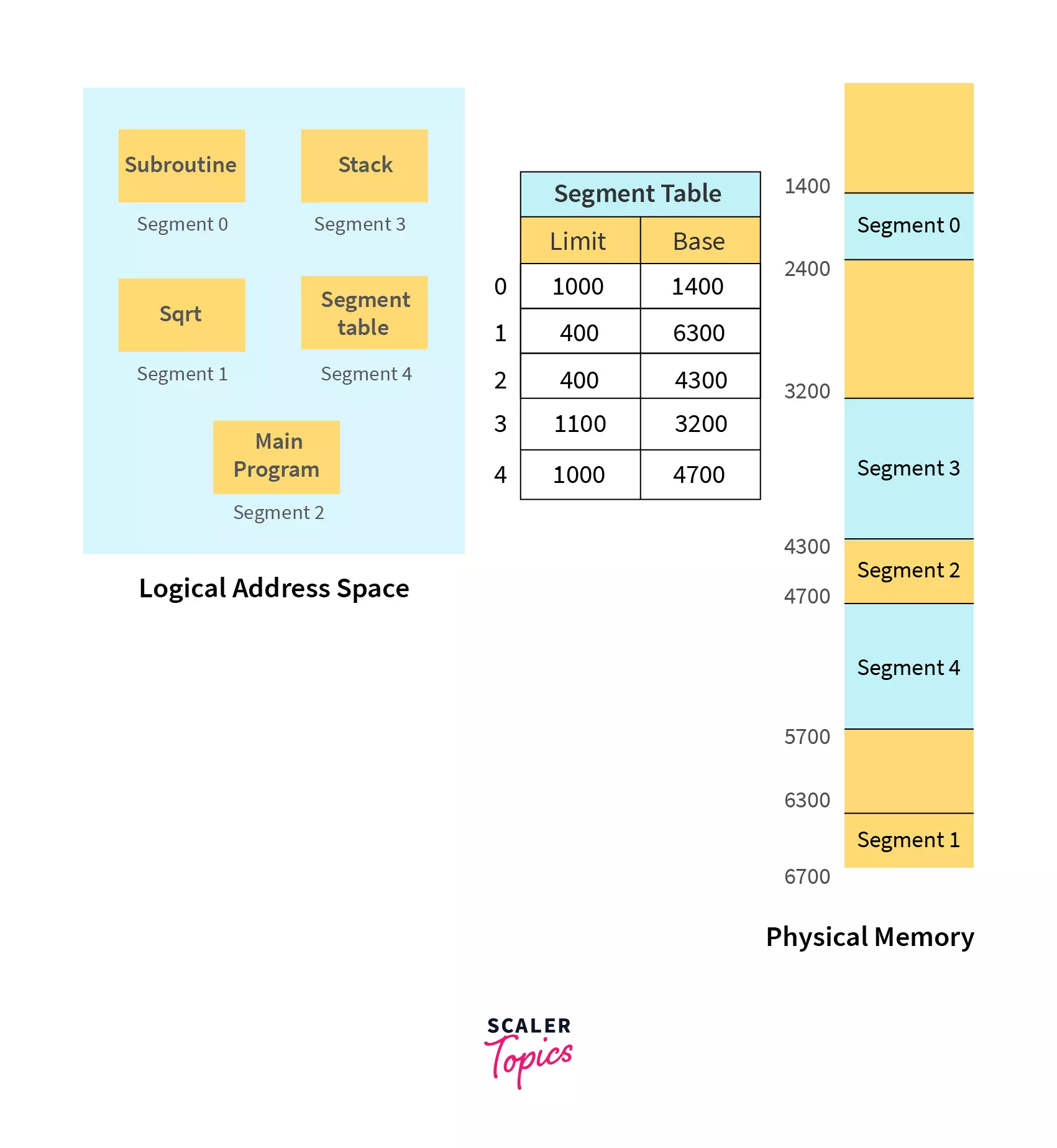

Segmentation is a non-contiguous memory allocation technique in which a process is divided into variable-sized logical segments based on the programmer's (user's) view of the program.

Memory Trick: Segmentation = Divide by Function

Why Segmentation? Paging divides memory into fixed-size pages, but it ignores the logical structure of the program. Segmentation divides the program according to its logical parts.

Like paging has a Page Table, Segmentation has a Segment Table.

It stores:

• Base → Starting physical address of the segment.
• Limit → Size of the segment.

Modern System architecture provides both segmentation and paging implemented in some hybrid approach.

• ✅ No Internal Fragmentation
• ✅ Divides program according to logical functions
• ✅ Better memory protection and sharing
• ✅ Segment table is usually smaller than the page table
• ❌ External Fragmentation
• ❌ Variable-sized segments make memory allocation and swapping harder

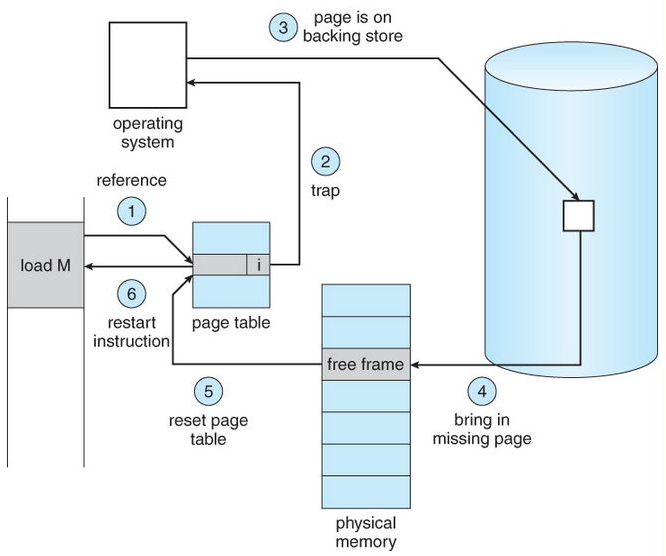

18. What is Virtual Memory? || Demand Paging || Page Faults

Virtual Memory is a memory management technique that allows a process to execute even if the entire process is not loaded into RAM. The remaining pages are stored on disk (swap space) and loaded only when needed.

Suppose

• RAM = 4 GB
• Program = 10 GB

Without Virtual Memory: ❌ Program cannot run.

• Only the required pages stay in RAM.
• Remaining pages stay on disk.

Swap Space : Swap Space is a portion of secondary storage (disk/SSD) used to temporarily store pages that are not currently in RAM.

Demand Paging : Demand Paging is a virtual memory technique in which a page is loaded into RAM only when it is needed.

Pager : Pager is the OS component that transfers individual pages between disk and RAM.

Valid-Invalid Bit : Valid Bit = 1 ✔ Page is present in RAM. Invalid Bit = 0 ❌ Page is not in RAM

A Page Fault occurs when a process tries to access a page that is not currently present in RAM.

When the CPU accesses a page, the MMU checks the page table. If the page is present in RAM (valid bit = 1), execution continues. If not (valid bit = 0), a page fault occurs. The OS checks whether the page is valid. If it is valid, it loads the page from disk into a free frame, updates the page table, and restarts the interrupted instruction. If the page is invalid, the OS terminates the process.

19. Page Replacement Algorithms

When a page fault occurs and there is no free frame in RAM, the OS must remove an existing page and load the required page. This process is called Page Replacement.

Aim: Minimize Page Faults

FIFO : Replace the page that entered memory first (oldest page).

Optimal Page Replacement : Replace the page that will not be used for the longest time in the future. Lowest possible page faults. Impossible to implement because the OS cannot predict the future.

LRU : Replace the page that has not been used for the longest time in the past.

• Stack (most recent at top, least recent at bottom) Example:

Recently Used:

A → just now
B → 2 sec ago
C → 20 sec ago

Replace C

LFU : Replace the page with the lowest reference count. Example:

A → 10 accesses
B → 2 accesses
C → 7 accesses

Replace B

• Optimal is best theoretical and LRU is best practical algorithm.

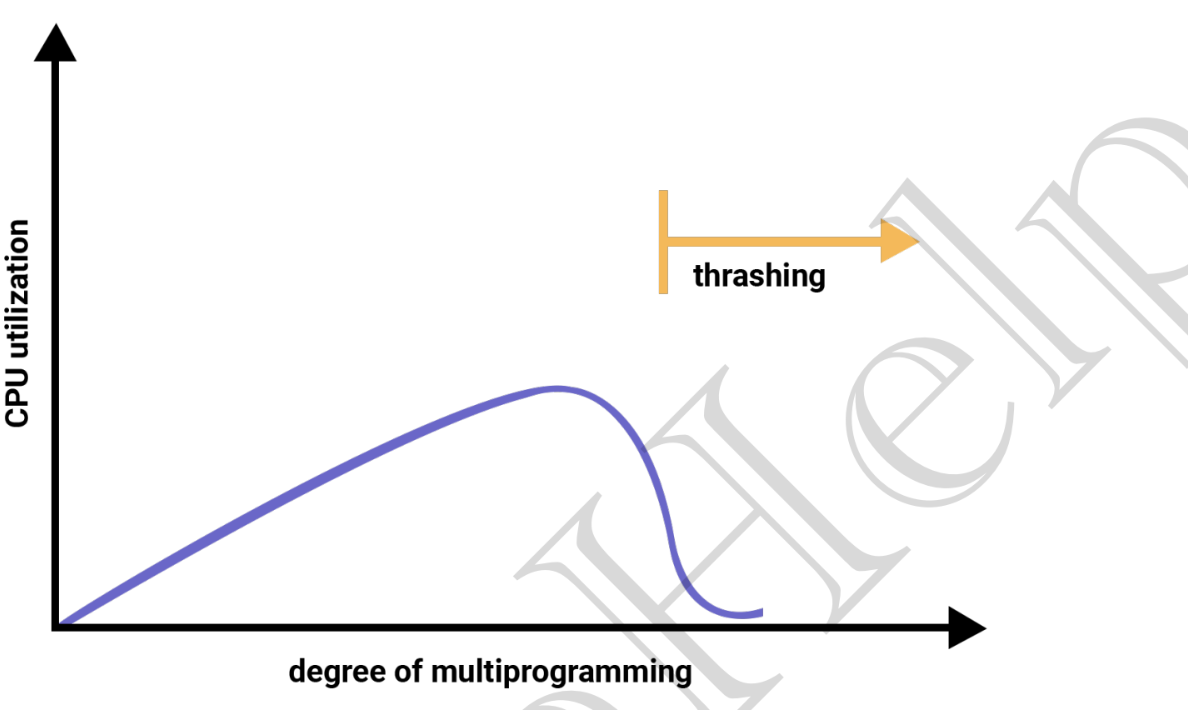

20. Thrashing

Thrashing is a condition in which the system spends more time handling page faults (swapping pages) than executing the actual program.

Too many page faults = Thrashing

When a process has too few frames in RAM:

• A needed page is missing → Page Fault
• OS loads that page.
• To load it, another page is removed.
• The removed page is needed again.
• Another page fault occurs.

This cycle repeats continuously.

❌ CPU waits for disk most of the time.

Solution :

• Allocate enough frames to a process so that all its currently active pages (working set) fit in memory.
• Control the page fault rate by increasing or decreasing the number of frames allocated to a process.
